Spectroscopic Gas Measurement Applications
Analytical Module For Ultra-Low Concentration Emission DA3020UV
Model：DA3020UV
Brand：Glit
Place：Shenzhen
-

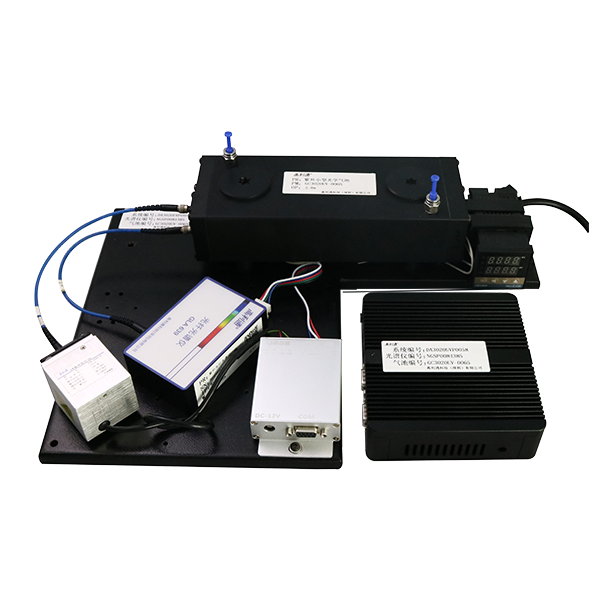

l The module includes a fiber spectrometer, an optical gas cell, a light source (xenon lamp or deuterium lamp) , a DOAS algorithm and a PC etc.
l High resolution
l Optional spectral range
l Optional light source
l Optional absorption length
l Excellent thermal and vibrating stability
l Easy to upgrade through modular design
l Easy to do assembly due to compact structure
-
●The module includes a fiber spectrometer, an optical gas cell, a light source (xenon lamp or deuterium lamp) etc., DOAS algorithm and PC etc.
●High resolution.
●Optional spectral range.
●Optional light source.
●Optional absorption length.
●Mass production for industrial applications with excellent thermal stability and vibration resistance.
●Easy to upgrade due to modular design.
●Easy to assemble due to compact structure.
-
1.1 Two-factor conventional type
Order Number
Measurement range
Specifications
Remark
M-1100A2C
S02:0～100mg/m3
NO:0～100mg/m3
Indication Error：≤±2%FS;
Repeatability：≤1 %;
Response Time：≤60 s;
One Day Drift ：1.5%FS;
One Week Drift：2%FS;
Design Standard：HJ76-2017
1.2 Direct measurement of nitrogen dioxide type by three factors
Order Number
Measurement range
Specifications
Remark
M-2800A3C
S02:0～100mg/m3
NO:0～100mg/m3
NO2:0～100mg/m3
Indication Error：≤±2%FS;
Repeatability：≤2 %;
Response Time：≤120 s;
One Day Drift ：2%FS;
One Week Drift：3%FS;
Design Standard：HJ76-2017
No additional installation of the NOx converter is required
1.2 Two factors are very low emission type
Order Number
Measurement range
Specifications
Remark
M-1100A2C
S02:0～50mg/m3
NO:0～50mg/m3
Indication Error：≤±2%FS;
Repeatability：≤2%;
Response Time：≤60 s;
One Day Drift ：2%FS;
One Week Drift：3%FS;
Design Standard：HJ76-2017
-
l For analyzing and monitoring gases（SO2、NO and NO2) having UV band absorption, such as environmental gas analysis, industrial process monitoring and CEMS etc.
