Light Sources
-

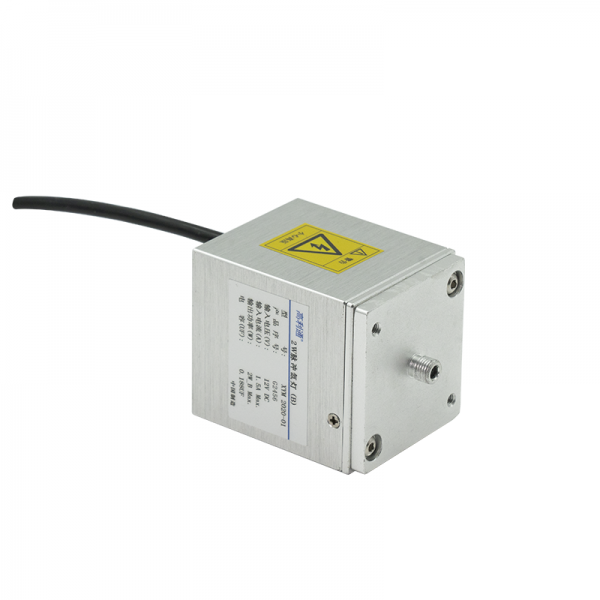

●Xenon light source with fiber coupling output.
●Work in pulse mode with adjustable repetition.
●Easily integrated with spectrometers and other devices.
●Mass production for industrial applications with excellent thermal stability and vibration resistance.
●Compact and cost effective.
●Default fiber interface is SMA905, other fiber interfaces such as FC etc. are optional.
-
●Xenon light source with fiber coupling output.
●Work in pulse mode with adjustable repetition.
●Easily integrated with spectrometers and other devices.
●Mass production for industrial applications with excellent thermal stability and vibration resistance.
●Compact and cost effective.
●Default fiber interface is SMA905, other fiber interfaces such as FC etc. are optional.
-
Items Specifications Units Wavelength Range 185-2500 nm Fiber Connector SMA905 Power Supply DC12/1.5 V/A Lamp Power 2 W Pulse Repetition Max 72 Hz Trigger Input Resistance 330 Ω Stability 1.50% Life Time 10^9 times Dimensions 42x46x53 mm Operating Temperature 0-45 °C
-
●Environmental inspection: inspection of water quality and air pollution
●Spectral analysis
●Instrument lighting
●Online inspections
●R & D in science and technology
●Customization
