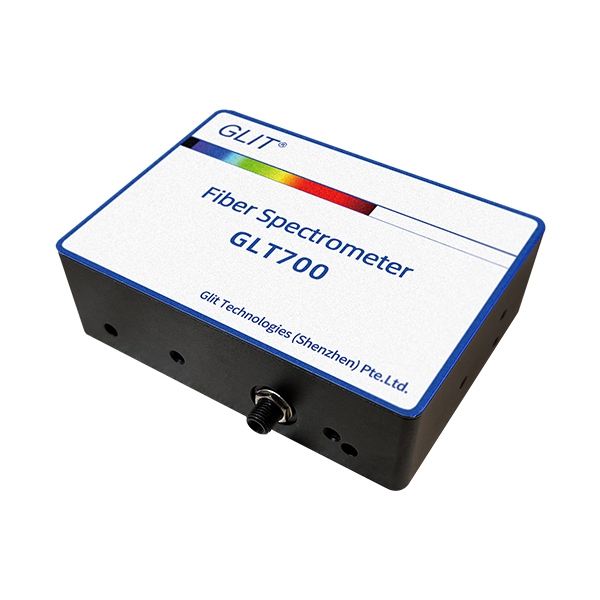

Fiber spectrometers GLT700
-
l Czerny-Turner optical structure with a grating, a high end light detector and a SMA905 fiber connector
l Controlled and powered by the computer through USB mini-B or RS232
l Unique software features, including automatic configuration of spectrometers, automatic reading of calibration coefficients, spectral acquisition and measurement
l Spectral measurements, including radiation, transmittance, absorbance and reflectivity
l Excellent thermal and vibrating stability
l Compact size and pleasant appearance
-
●Excellent Consistency of mass production for industrial applications
●Excellent consistency of thermal stability and vibration resistance
●Compact size and sleek appearance.
-
Items
Specifications
Remarks
Fiber Connector
SMA905
Slit
10, 25, 50, 100µm
Wavelength Range
350-1000nm
Depending on the grating used
Spectral Resolution
FWHM 1.3nm@546nm@25µm slit
Depending on wavelengths and slits used
Order Sorting Filter
To eliminate higher order spectrum
Pixel Number
3648
Pixel Size
8μmx200μm
Detector Collecting Lens
Yes
SNR
900:1
Room temperature
ADC Resolution
16 bits
Integration Time
1 ms-15min
Depending on the detector used
Data Output
Count vs. wavelength or pixel
Power Supply
DC5V/250mA
Communication
USB mini-B、RJ45、RS232
Data Average
1-100 times
The average can be done by embedded chip in the spectrometer
Data Extraction
1-3648 pixel
Data segment can be selected
Operation Software
SPEC-GLA600
Application Programming Interface
glaDevSys
For developing software by users
Dimensions
94mmx66mmx29mm
Weight
272g
Mounting
4xM3 screw holes on the bottom
Operating Temperature
-10-50℃
Storage Temperature
-20-70℃
-
l Environmental inspection: inspection of water quality and air pollution etc.
l Chemical industry
l Optical coating inspection
l Glass and transparent materials inspection
l Measuring light sources such as LEDs
l R&D in science and technology
