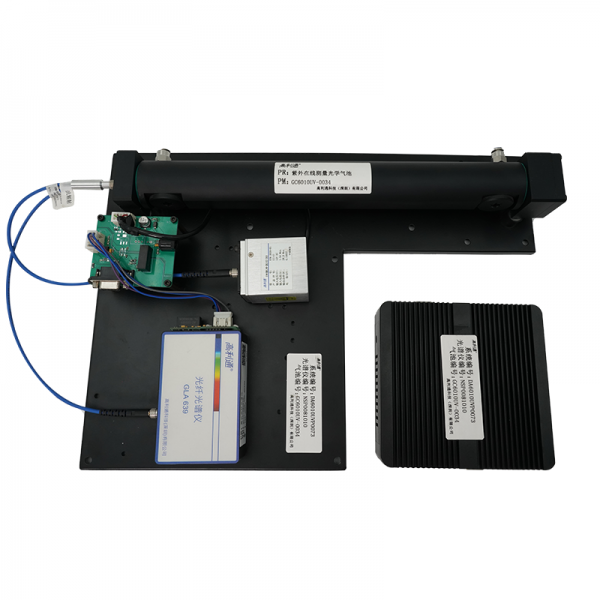

The online environmental gas monitoring module DOAS-6010UV includes a fiber spectrometer, a light source (xenon lamp or deuterium lamp), DOAS algorithm and a PC.
●The module includes a fiber spectrometer, an optical gas cell, a light source (xenon lamp or deuterium lamp) etc., DOAS algorithm and PC etc.
●High resolution.
●Optional spectral range.
●Optional light source.
●Optional absorption length.
●Mass production for industrial applications with excellent thermal stability and vibration resistance.
●Easy to upgrade due to modular design.
●Easy to assemble due to compact structure.
Items
Specifications
Remarks
Light Path
0.6m
Optional upon request
Light Source
Xenon lamp or deuterium lamp
Optional upon request
Wavelength Range
190-380/190-480nm
Optional upon request
Communication
USB or RS232
Gas Connector
Ø6mm
Material of Main Part
Aluminium with coating
Power Supply
DC12V/3A (spectrometer and xenon lamp) ,
DC12V/5A(industrial computer), Average power12w
Lamp Cooling
Heatsink with a fan
For deuterium lamp
Weight
~3Kg
Dimension
222mmx10mmx55mm
●For measuring and analyzing gases having UV band absorption, such as environmental gas inspection, industrial process monitoring and CEMS etc.
